Monofilament Extrusion Machine for PA low shrikage filament 0.15-0.35mm 50kgh
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) Pressure feedback system which can adjust the screw speed automatically.
(4) Material of barrel heater: Far infarad
(5) Metering pump 50cc, rotation speed: 0-45 rotation.
(6) Oil heating round spinneret: 1 set.
3. Quenching tank: 1 set
(1) The tank is made by SS 304.
4. First seven roller stretching unit
(1) Seven variable diameter rollers which made by stainless steel 304.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
(4) Equip 1 pressing roller.
5. Overflow type hot water tank:1 set
(1) Tank size: 4000mm
(2) Heating power: 45KW in 2 zones,
(3) The tank is made by SS 304 with insulating layer.
(4) Water removal device: 2 sets with 5.5kw fan.
(5) Water circulating water pump 2 sets
6. Second seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipe.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
7. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4300 mm
8. Third Seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
9. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 4300 mm
10. Forth Seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(4) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
11. Lubricating system: 1 set
(1) Frequency control of speed
12. Spindle winder: 312 spindles
(1) Spool and bobbin are as client's reqeust
(2) The frame transmission is frequency control, driving motor: 2.2kw
(3) The frame transmit by gear rack
(4) Winding motor: 5KG
13. Waster yarn collectors: 2 sets
(1) Torque motor power: 80KG.cm
Parameter:
| Screw diameter | Φ70mm |
| Raw material | PA chips | Filament size | 0.15-0.35mm |
| Capacity | 50Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 300 spindles |
| Max linear speed | 180m/min | Instillation power | 350Kw |
| Nozzle holes | 280 holes | Overall size | 52×2.9×2.9m |

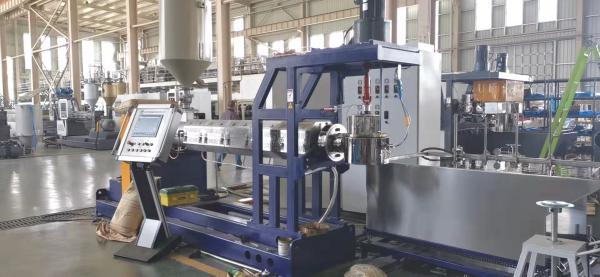

Pictures:
